Height Safety Davit

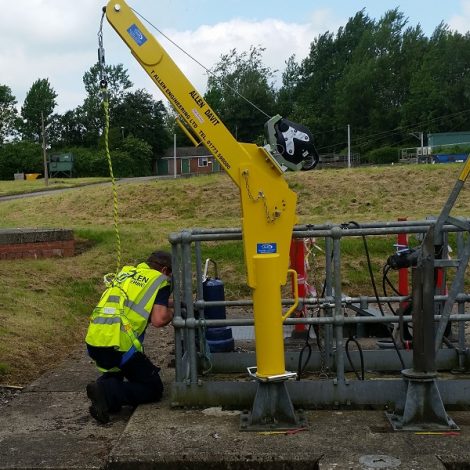

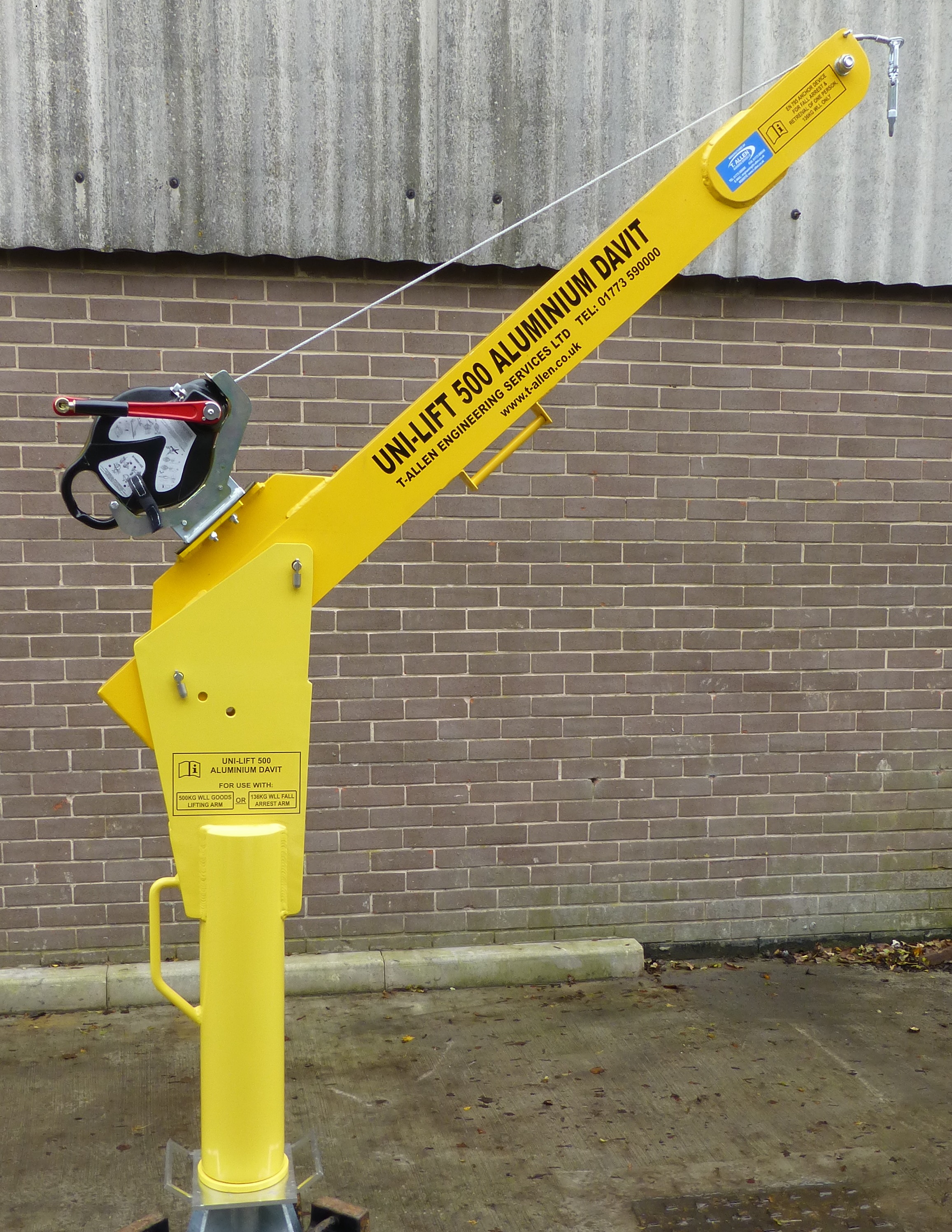

The Uni-Lift 500 lightweight aluminium portable fall arrest/height safety davit,  has a 136kg WLL for single person fall arrest applications.

Designed as a two piece assembly, the Uni-Lift 500 is supplied with an industry standard 65mm diameter universal davit mounting pin to suit our standard sockets.

The assembly can also be supplied with non-standard mounting pins to suit customer requirements.

The Uni-Lift 500 davit is designed to be assembled and used with the T Allen Engineering Services Ltd standard davit sockets.

Features:

• Smooth 360 degree rotation, even when under maximum load.
• Adjustable height/reach settings ranging from 760mm to 1200mm reach and a maximum height of lift of 2483mm.
• Aluminium construction with a yellow powder coat finish. Each piece weighs less than 25kgs.
• Easy access winch mounting plate.

The Uni-Lift 500 has been designed to be used in close proximity to hand-railing, without any need for adaption or extension pieces.

Manufactured in lightweight aluminium, the Uni-Lift 500 davit can be easily transported and erected by a single person. It has no heavy parts or awkward bolts; The two locking and adjustment points on the Uni-Lift 500 contain a sleeved hole for ease of use, allowing the fold-down locking pin to slide in easily.

The Uni-Lift 500 body can be supplied with interchangeable arms to accommodate:

• Goods lifting via manual chain block or electric hoist, 500kg WLL
• Goods lifting with a winch, electric or manual, 500kg WLL
• Fall arrest/rescue of a single person, 136kg WLL
