| Socket Type | WLL (kg) | Base Dimensions (mm) | To Fit 65mm Diameter Pin | To Fit 63.5mm Diameter Pin | To Fit 75mm Diameter Pin | No. Of Fixing Holes | Fixing Size | Finish | |

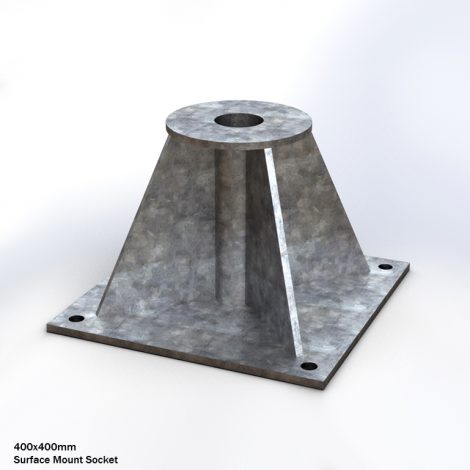

| Surface Mount | 500 | 400 x 400 | Yes | Yes | No | 4 | M20 | Galvanised |  |
| Surface Mount | 500 | 250 x 250 | Yes | Yes | No | 4 | M20 | Galvanised |  |
| Surface Mount | 1000 | 500 x 500 | No | No | Yes | 8 | M20 | Galvanised | |
| Socket Type | WLL (kg) | Flange Diameter (mm) | Total Depth Required (mm) | To Fit 65mm Diameter Pin | To Fit 63.5 Diameter Pin | To Fit 75mm Diameter Pin | Finish | |
| Cast In | 500 | 200 | 350 | Yes | Yes | No | Galvanised | |
| Cast In | 1000 | 200 | 350 | No | No | Yes | Galvanised | |
| Grout In | 500 | 200 | 350 | Yes | Yes | No | Galvanised | |
| Grout In | 1000 | 200 | 350 | No | No | Yes | Galvanised |
| Socket Type | WLL (kg) | Back Plate Dimensions (mm) | To Fit 65mm Diameter Pin | To Fit 63.5mm Diameter Pin | To Fit 75mm Diameter Pin | No. Of Fixing Holes | Fixing Size | Finish | |
| Wall Mount | 500 | 450(H) x 400(W) | Yes | Yes | No | 7 | M20 | Galvanised | |
| Wall Mount | 1000 | 450(H) x 400(W) | No | No | Yes | 7 | M20 | Galvanised | |
| Socket Type | WLL (kg) | Dimensions (mm) | To Fit 65mm Diameter Pin | To Fit 63.5mm Diameter Pin | To Fit 75mm Diameter Pin | Fixing Size | Finish | |
| Bridge Mount | 500 | 250 x 250 x 250 | Yes | Yes | No | M16 | Galvanised | |
| Bridge Mount | 1000 | 250 x 250 x 250 | No | No | Yes | M16 | Galvanised | |
| Inverted Mount | 500 | 400 x 400 x 312 | Yes | Yes | No | M20 | Galvanised | |
| Inverted Mount | 1000 | 500 x 500 x 350 | No | No | Yes | M20 | Galvanised | |
